One Cruiser, All Terrains

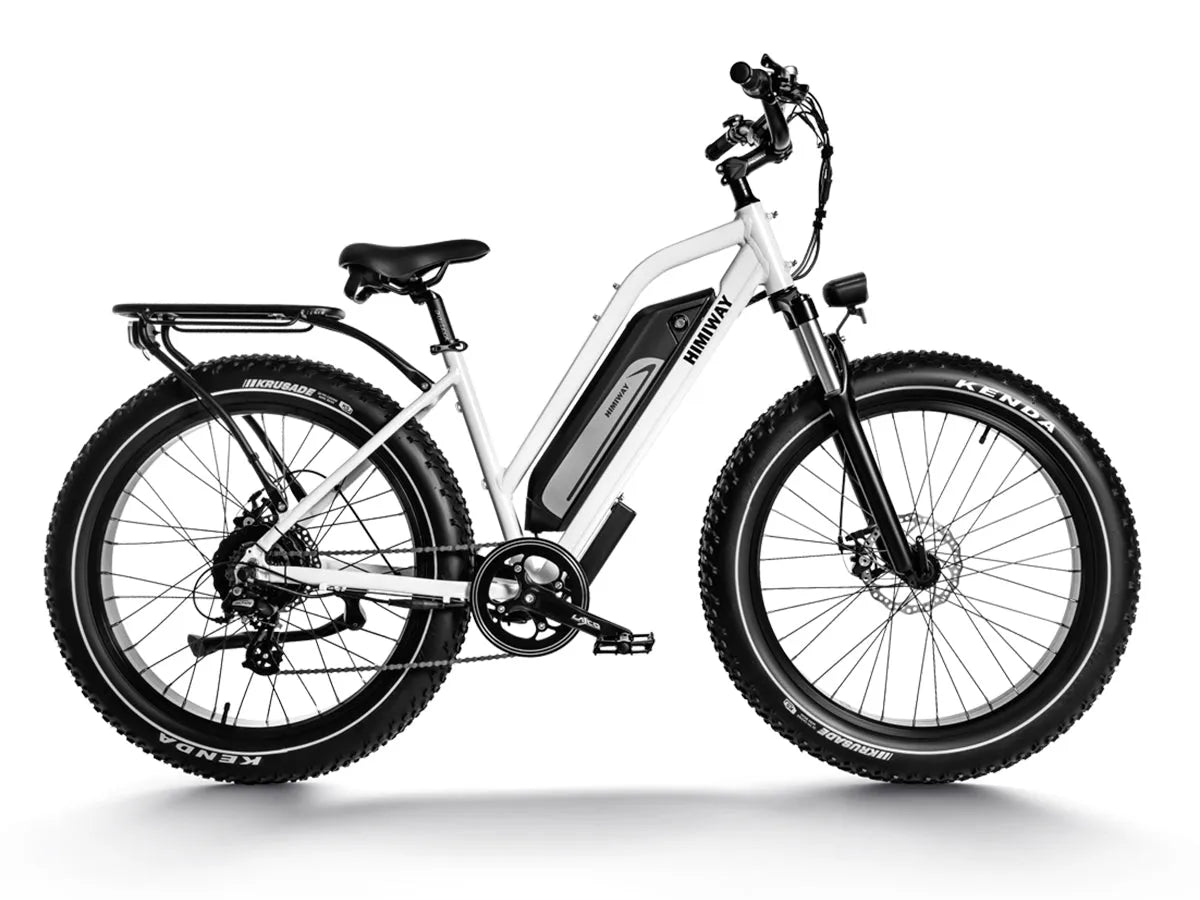

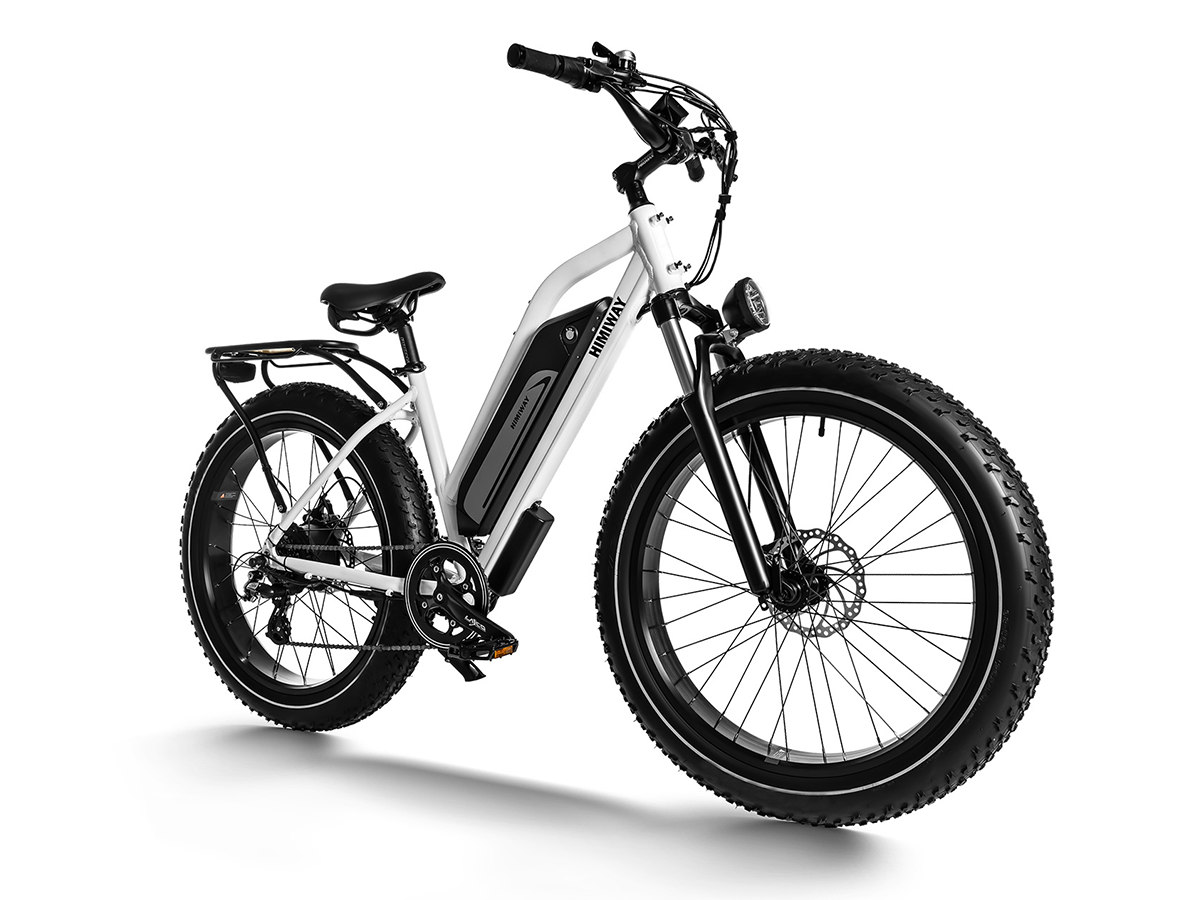

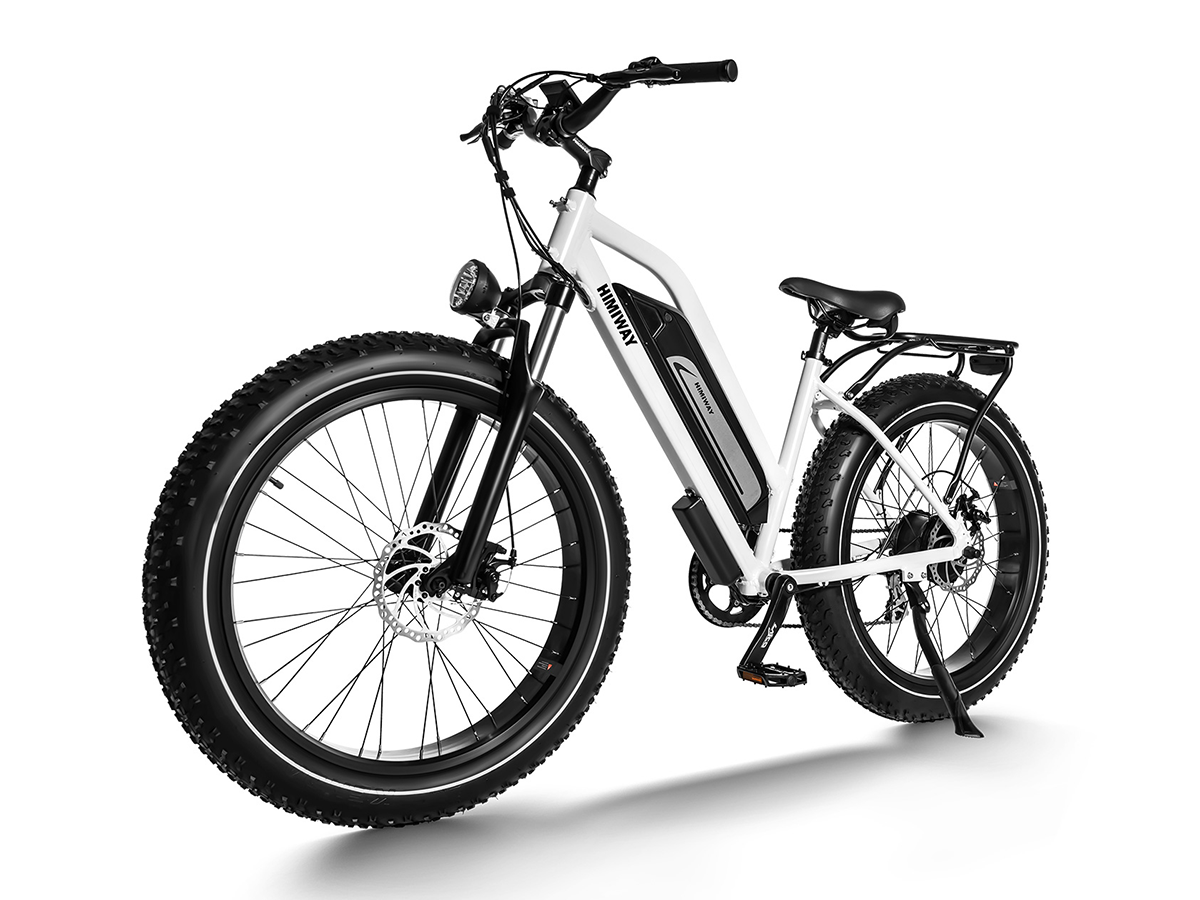

All Terrain Step Thru Electric Bike Cruiser ST/ D3 ST
Automatic Discount: When the discount conditions are met, the discount amount will be deducted automatically during checkout.
D3 ST(Cruise...
Step-thru-
Availability: In Stock
-
Shipping Time: Within 2 Business Days
Compatible Accessories
D3 ST Included in Delivery
-
60 Miles
Per Charge (maximum)
-
750 W
Geared Hub Motor
-
840 Wh
Samsung/LG Battery 1 D3 New Model: 720Wh
-
350 lbs
Payload Capacity
-
20+ Mph
Top Speed 2 Reach speeds of up to 20 mph, No pedaling required.
-
Mechanical Brakes
180MM
-
7-Speed
Shimano Derailleur
-
26x4 "
Kenda Fat Tire
- 1 - D3 New Model: 720Wh
- 2 - Reach speeds of up to 20 mph, No pedaling required.
Geometry
-
A – total length75
-
B – handlebar height46.5
-
C – handlebar length28
-
D – wheelbase45
-
E – wheel diameter28.7
-
F – minimum seat height22
-
G – maximum seat height29
-
H – chain stay length18.7
-
K – effective top tube length23
-
L – head tube length6.1
-
N – standover heightST 27.9/ SO 30.3
Specification
-
Frame6061 Aluminum frame
-
HeadsetNeco H148 28.6×44*44×30mm
-
ForkGuide-26”-TNL-95 95mm travel
-
ShockAlloy front suspension fork with lockout and adjustment
-
Front wheelMB015-92 13G*135*9mm MD242 26*87mm 12G*36
-
Rear wheelRim: 3G*135*9mm MD242 26*87mm | Spoke: 12G*36 | Hub: 48v 750w Himiway hub motor
-
TiresKenda 26*4.0
-
BatterySamsung/LG 48V 17.5Ah 1 New Model: Samsung/LG 48V 15Ah
-
Motor750W brushless gear motor
-
DisplayLCD display with USB charging
-
ThrottleHalf twist throttle
-
SensorsCadence sensor丨speed sensor丨brake sensor
-
CranksetCrank arm: 4IXF-212FA 170mm | Chain ring: 46T
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro ARIES MD-M300 mechanical disc brakes
-
Rear brakeTektro ARIES MD-M300 mechanical disc brakes
-
RotorsTektro TR180-24 F:180mm R:180mm
Components
-
StemYC-C410 28.6*80*31.8mm
-
HandlebarYC-B087 22.2*31.8*700mm
-
SeatpostH202211DJ ISO-M 30.4*350mm
-
SaddleTTZ032X
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range35~60 miles
-
Controller48V/22A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5'1" ~ 6'5"
-
Rider height72lb.(with battery)
-
Max. system weight350 lb.
- 1 - New Model: Samsung/LG 48V 15Ah
Does Step-Thru have other color options?
Does my height/weight suit the bike?
Which class of E-bike does Himiway Cruiser Step-thru belong to?
Generally, how long will it take to assemble?
I want more Himi points to get more discounts. How to redeem Himi points?
What does step-thru mean? What is a step-thru bike?
What is the top speed of Himiway Cruiser Step-thru?
What benefits can Himiway step-thru bring to senior generations while riding?
What are the advantages of fat tires in all terrain conditions?
I have other questions.
LONG RANGE EXPERT
High-performance Samsung/LG Lithium-ion Battery
The single range can be up to 60+ miles per charge on pedal-assist mode and around 35 miles on pure electric power mode.
-
60 Miles
Per Charge (maximum)
-
8.8 lb.
Battery Weight
Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.
-
Short Circuit Prevention
-
Over-load Prevention
-
Reverse Prevention
-
Wiring Protection
-
Over-current Prevention
-
Over-charging Over-discharging
-
Cell Balancing
-
PTC Chip
-
Temperature Control
Updated 750W Motor
Fast Acceleration & Good Gradeability & Longer Lifespan
750W Upgraded Brushless Geared Hub Motor use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
-
80 Nm
Max Torque
-
1200 W
Peak
You can think of the FOC as the brain controlling the motor in real-time. It recognizes your riding conditions and instantly calls on the motor for optimal performance. The FOC measures scooter diagnostics, which you as a driver cannot see, and then decides how to respond to your driving inputs.
clear at a glance
Experience Natural Handling and Comfortable Human-vehicle Interaction
The Backlit LCD display provides information on speed, mileage, power, etc.
-
USB Charging
-
Security Code
-
State of Riding
-
Fault Warning
-
Cycling Data
-
Function Set
-
Switch
-
Light ON/OFF
-
Info
-
Half twist throttle
-
Shimano gearbox
-
Bell
The Kenda All-terrain Fat Tire
26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
-
Gravel Road
-
Sandy Ground
-
Mountain
-
Brick Road
-
Wetland
-
Snowy Road
350 lb. Payload with Aerospace Grade Aluminum Frame
Its frame is made of high-quality 6061 aluminum, capable of handling a maximum weight of 350 lbs, surpassing the average industry standard payload of 275 lbs. The frame is specially designed for larger riders and those carrying heavy belongings. With its upgraded motor, Himiway Cruiser provides exceptional power and smoothness, even when carrying heavy cargo.
-
77 lb.
with Battery
-
350 lb.
Payload Capacity
